Family Lodge 3d design renderings

Family Lodge

We are designing a multigenerational housing development (detached modest single family and townhomes) with a shared recreational facility for our family. This is that facility.

Floor Plan 368.75㎡

Family Lodge floor plan 368.75
Family Lodge 3d design picture 368.75
Needs dictated the overall floor plan. For example, the theater is laid out for optimal surround sound, with 8" thick walls that taper outward slightly from the large projection screen. A large, open kitchen was a must to allow for 3-4 active cooks for holiday gatherings.
web

Space Showcase 15 Renders

Family Lodge 3d design renderings

720°

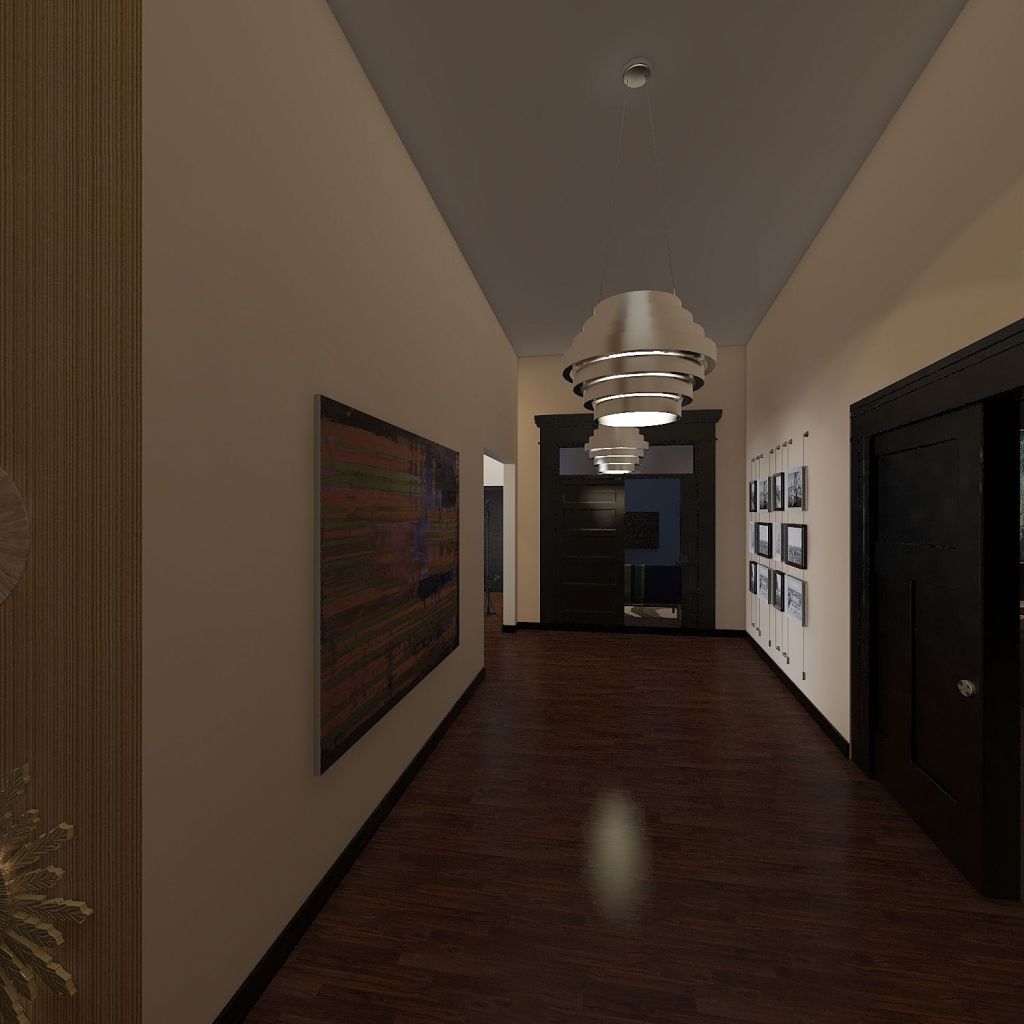

From the main entrance, you can see the theater entrance, the video game room and the bathroom hall. Immediately to the right is the entrance to the media server and projection room.
Family Lodge 3d design renderings

720°

The bathroom hall offers a touch of opulence with beautiful wall textures and wall of mirror "suns."
Family Lodge 3d design renderings

720°

The open plan communal space opens via a wide archway into the widest part of the main hallway, just outside the video game room.

Family Lodge 3d design renderings
The janitorial closet holds cleaning supplies and connects the interior of the space to the storage room.

Family Lodge 3d design renderings
One of two bathrooms featuring a bold black and white tile pattern on the walls.

Family Lodge 3d design renderings
Family Lodge 3d design renderings

720°

A soundproofed room large enough for video gaming, VR gaming or flex space. Imagine parking kids/teens here!

Family Lodge 3d design renderings
Lighting is provided by overhead can lights, wall sconces, and a set of spotlights (allowing the room to be used for lectures or other purposes not requiring the projector).
Family Lodge 3d design renderings

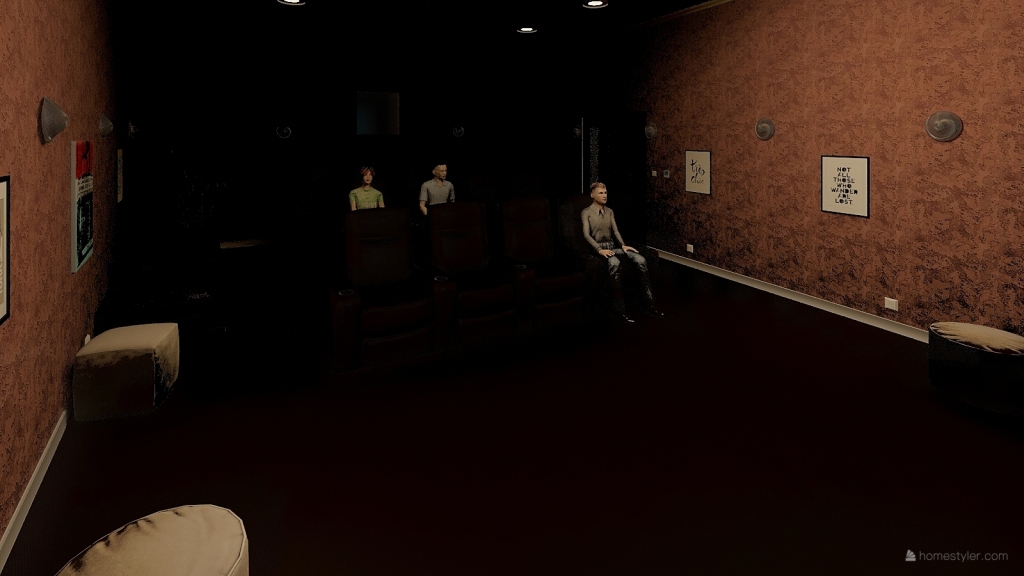

The theater features raked seating, a chaise and soft ottomans for flexible, comfortable seating.

Family Lodge 3d design renderings
The layout of the kitchen promotes conversation with guests seated at the island, at the tables or even in the sitting area.
Family Lodge 3d design renderings

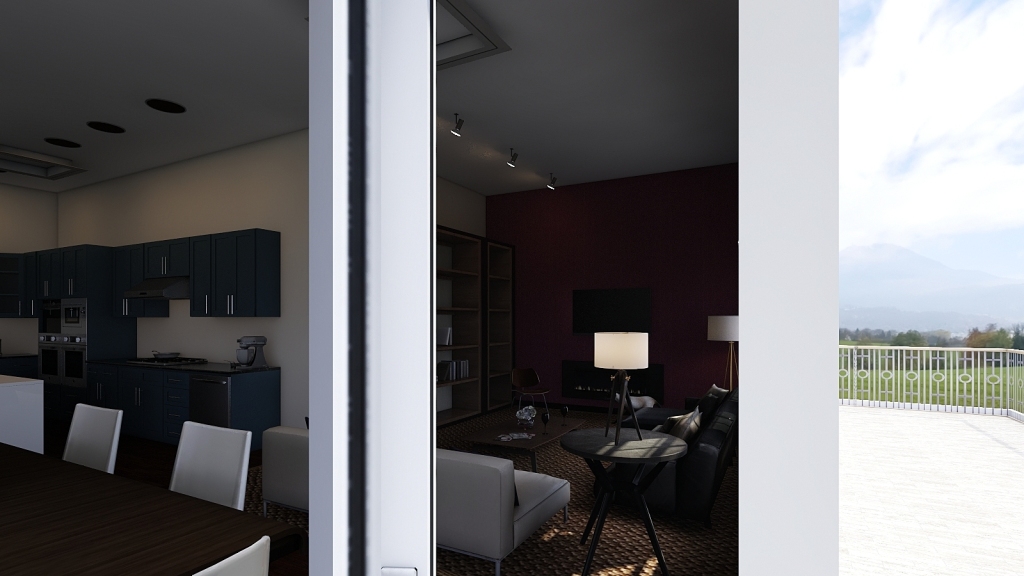

To take advantage of mild Pacific Northwest weather and a love of the outdoors, two large folding glass walls open to connect the inside to a spacious patio overlooking the grand view.
Family Lodge 3d design renderings

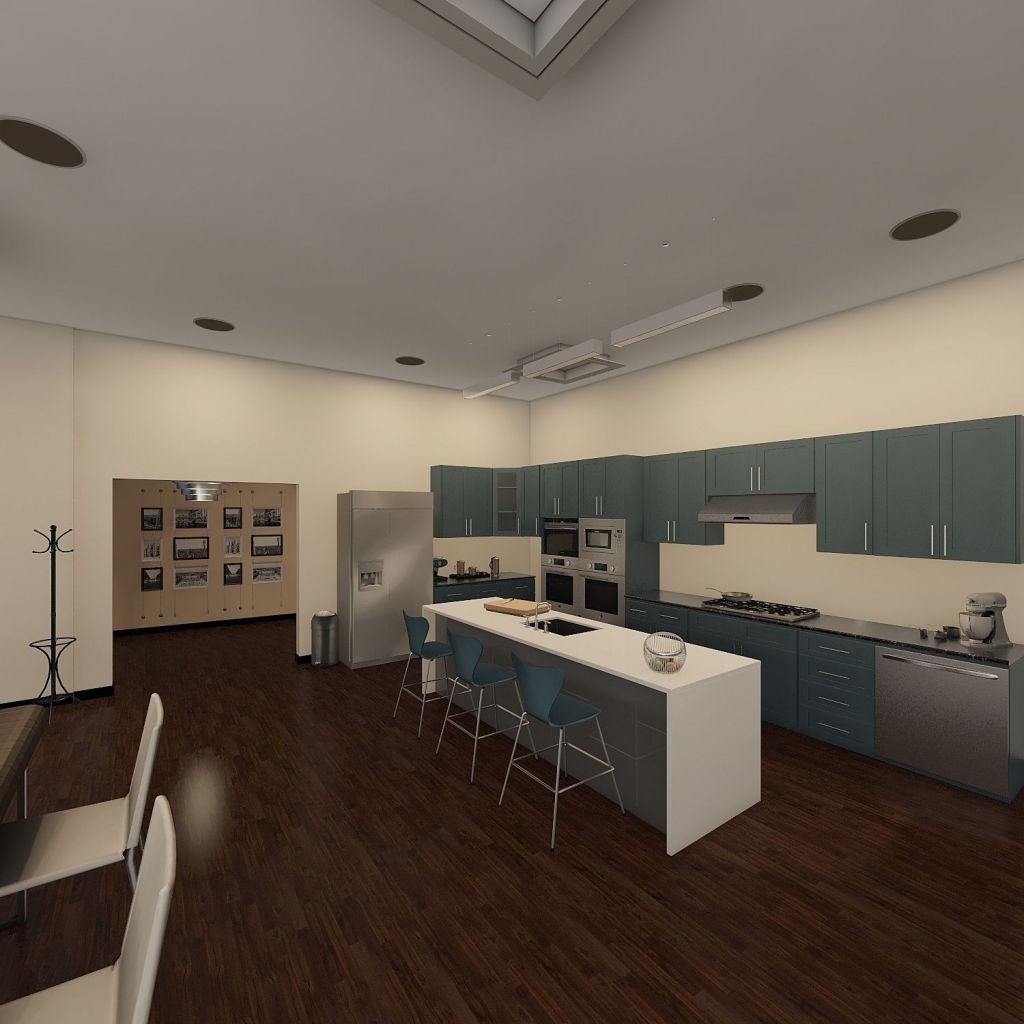

A large, spacious kitchen is crucial for allowing 3-4 family members to cook during holiday gathering and parties. Dual ovens, a microwave and a steam warming oven compliment the five-burner range.
Family Lodge 3d design renderings

720°

The sitting area is meant to provide a conversational space during gatherings, and to act as a reading area at other times. It features a large book case, electric fireplace and a dramatic accent wall.
Family Lodge 3d design renderings

720°

A large, open, multi-use space is the heart of the family lodge.

This home design project - Family Lodge was published on 2020-05-23 and was 100% designed by Homestyler floor planner, which includes 15 high quality photorealistic rendered images.
