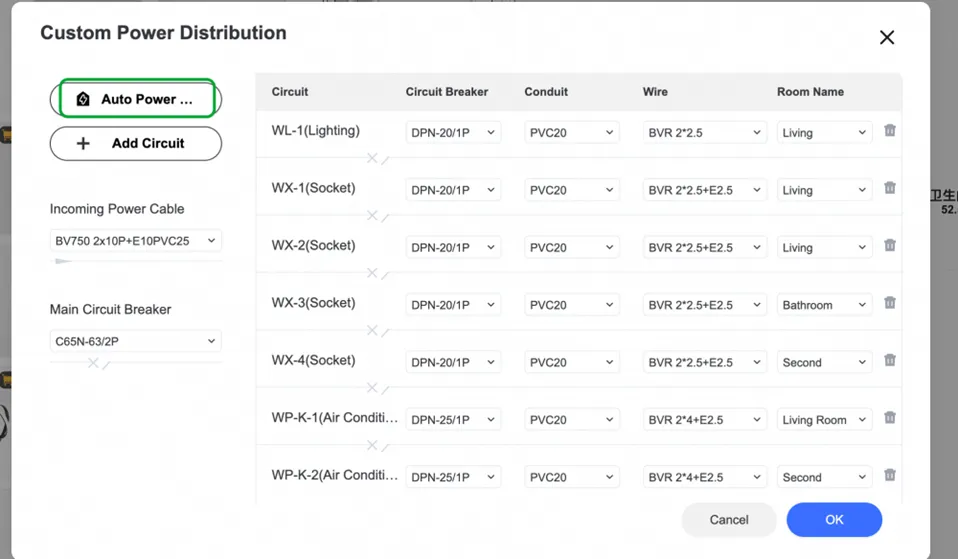

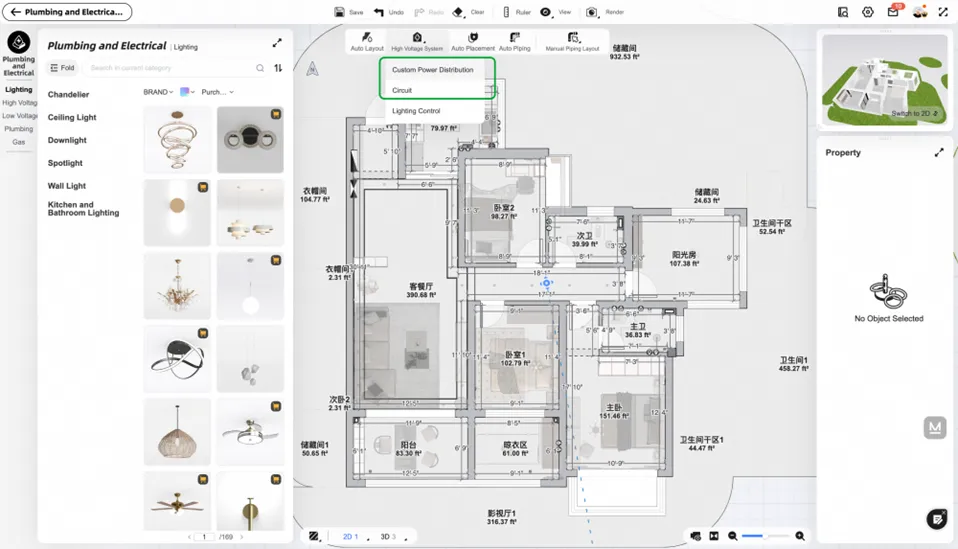

Custom Power Distribution settings are used to configure different types of circuits for each room, as well as the models of circuit breakers, conduits, and wires used.

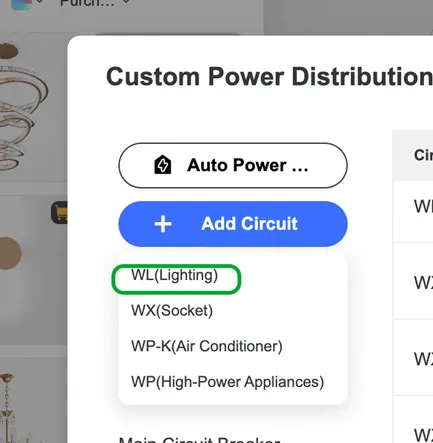

You can create lighting circuits (WL), strong and weak current socket circuits (WX), air conditioning circuits (WP-K), and high-power circuits (WP).
You can use the automatic strong current settings.

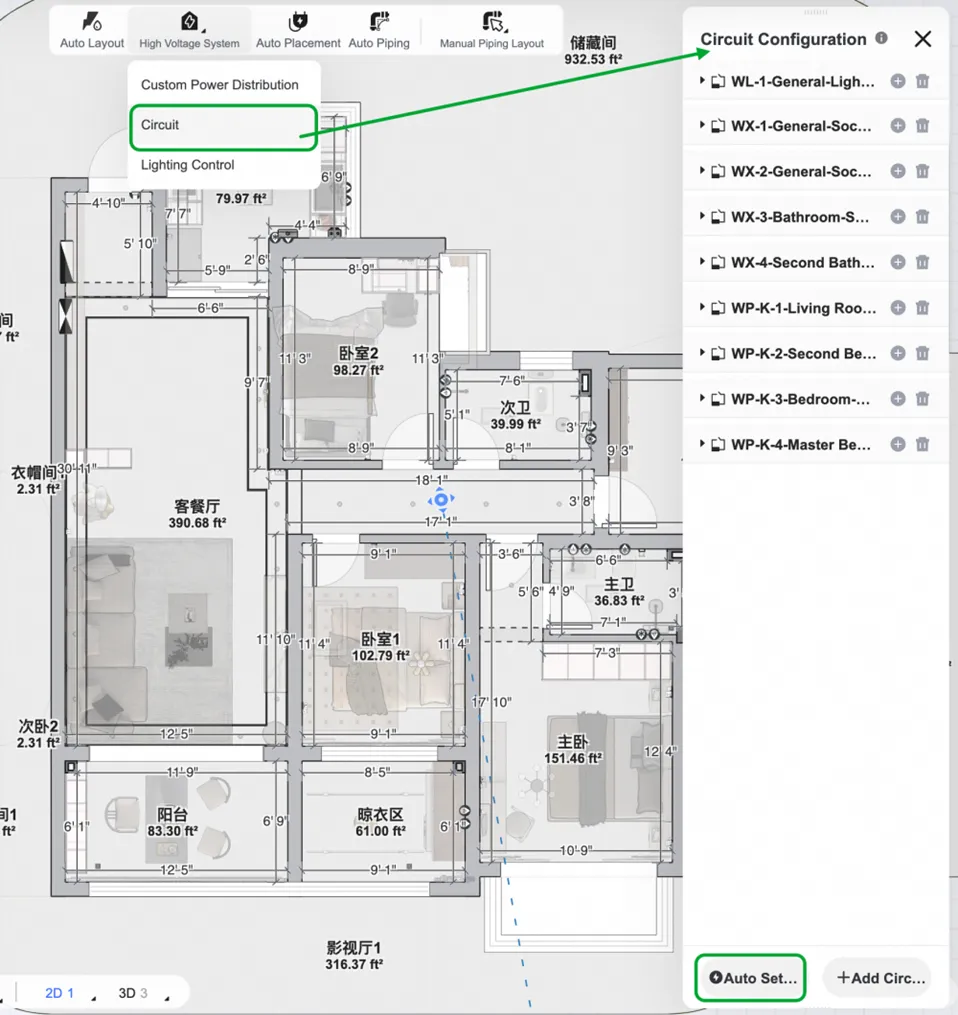

2. Circuit settings, based on Custom Power Distribution, add corresponding model points in each circuit;
automatic circuit settings can be used.

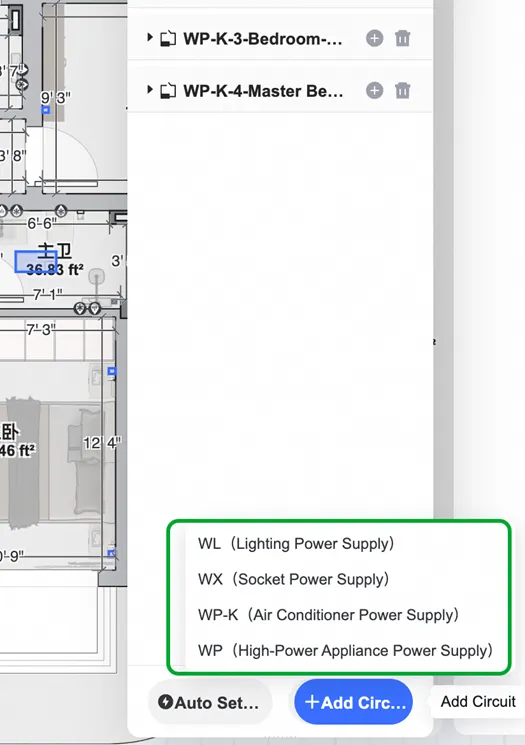

You can create circuit point configurations for: lighting circuits (WL), strong and weak current socket circuits (WX), air conditioning circuits (WP-K), and high-power circuits (WP).
Note: Deleting the circuit configuration here will clear the corresponding circuits in Custom Power Distribution.
3. Light Control settings generate the control relationship between switches and fixtures, creating a lighting control relationship diagram during the export of drawings.
Prerequisites:
(1) Complete the WL (Lighting) settings in 'Custom Power Distribution';
(2) After completing (1), add relevant switches and fixture points to the lighting circuit in 'Circuit'.
4. Manual Piping Layout
Prerequisites for manually laying out strong and weak current conduits: the strong and weak current box models must be placed, and steps 1 and 2 must be completed, adding the strong and weak current boxes to the corresponding circuits, with other strong and weak current point models in the circuits.
Manual layout of cold water pipes: place the incoming water source model and at least one cold water outlet model;
Manual layout of hot water pipes: at least two hot water outlet models.
